Yealink SIP-T54W

4.3'' 480x272 Adjustable Screen

Built in Dual Band Wi-Fi 2.4G/5G

Built-in Bluetooth 4.2

$279
$255.95
Buy Now!Datasheet
PREMIER PARTNER

Yealink

A VERSATILE PHONE DESIGNED FOR THE UNCOMPROMISING USER

Yealink, delivers innovative collaboration solutions for office, hybrid and remote work, including business desk, wireless and conference phones, professional headsets, and video endpoints for both personal workspaces and meeting rooms. Yealink offers a comprehensive, end-to-end portfolio of hybrid work solutions that continue to innovate how work gets done. Yealink is now the go-to solutions provider for customers and partners seeking to create the optimal hybrid work experience for today and the future.

SPECIFICATIONS

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Suspendisse varius enim in eros elementum tristique.

Yealink SIP-T54W

$255.95
Buy Now
Audio Features
  • HD voice: HD handset, HD speaker
  • Hearing aid compatible (HAC) handset
  • Acoustic Shield
  • Audio codec: Opus, G.722, PCMA, PCMU, G.729A/B, G.726, G.723.1, iLBC
  • DTMF: In-band, Out-of-band (RFC 2833) and SIP INFO
  • Full-duplex hands-free speakerphone with AEC
  • VAD, CNG, AEC, PLC, AJB, AGC
Phone Features
  • 16 VoIP accounts
  • Call hold, call forward, call waiting, call transfer
  • One-touch speed dial, hotline, mute, DND
  • Group listening, SMS, emergency call
  • Redial, call return, auto answer
  • 3-way conferencing
  • Direct IP call without SIP proxy
  • Ring tone selection/import/delete
  • Set date time manually or automatically
  • Dial plan, XML Browser, Action URL/URI
  • RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)
  • Built-in dual band Wi-Fi:  - Network standard: IEEE802.11a/b/g/n/ac  - Transmission rate: Up to 433Mbps (dynamic)  - Frequency range: 2.4GHz/5.0GHz
  • Built-in Bluetooth for:   - Bluetooth headset,  - Mobile contacts synchronization  - Bluetooth call
  • USB port (2.0 compliant) for:  - Wired/wireless USB headset  - USB call recording through USB flash drive  - Color-screen expansion modules EXP50 (up to 3)
  • Content Sharing (via Yealink VCD)(1)
  • Enhanced DSS key
Directory
  • Local phonebook up to 1000 entries
  • Black list
  • XML/LDAP remote phonebook
  • Smart dialing
  • Phonebook search/import/export
  • Call history: dialed/received/missed/forwarded
Corded-Cordless Phone (via DECT Dongle DD10K)
  • Up to 4 DECT cordless handsets
  • Up to 4 concurrent calls
  • Support Yealink W52H/W53H/W56H/DD Phone
  • Slave Handset for Master Deskset
IP-PBX Features
  • Busy Lamp Field (BLF)
  • Bridged Line Apperance (BLA)
  • Anonymous call, anonymous call rejection
  • Hot-desking, voice mail
  • Flexible seating
  • Executive and Assistant
  • Call park, call pickup
  • Centralized call recording, call recording
Display and Indicator
  • 4.3" 480 x 272-pixel color display with backlight
  • 16 bit depth color • LED for call and message waiting indication
  • Dual-color (red or green) illuminated LEDs for line status  information
  • Wallpaper
  • Intuitive user interface with icons and soft keys
  • Multilingual user interface
  • Caller ID with name and number
  • Screensaver
  • Power saving
Feature keys
  • 10 line keys with LED
  • 10 line keys can be programmed up to 27 various features  (3-page view)
  • 7 features keys: message, headset, hold, mute, transfer,   redial, hands-free speakerphone
  • 4 context-sensitive “soft” keys
  • 6 navigation keys
  • Volume control keys
  • Illuminated mute/headset/hands-free speakerphone ke
Interface
  • Dual-port Gigabit Ethernet
  • Power over Ethernet (IEEE 802.3af), class 3
  • 1 x USB port (2.0 compliant)
  • 1 x RJ9 (4P4C) handset port
  • 1 x RJ9 (4P4C) headset port
Management
  • Configuration: browser/phone/auto-provision
  • Auto provision via FTP/TFTP/HTTP/HTTPS for mass deploy
  • Auto-provision with PnP
  • BroadSoft device management
  • Zero-SP-touch, TR-069
  • Phone lock for personal privacy protection
  • Reset to factory, reboot
  • Package tracing export, system log
Network and Security
  • SIP v1 (RFC2543), v2 (RFC3261)
  • Call server redundancy supported
  • NAT traversal: STUN mode
  • Proxy mode and peer-to-peer SIP link mode
  • IP assignment: static/DHCP/PPPoE
  • HTTP/HTTPS web server
  • Time and date synchronization using SNTP
  • UDP/TCP/DNS-SRV(RFC 3263)
  • QoS: 802.1p/Q tagging (VLAN), Layer 3 ToS DSCP
  • SRTP for voice
  • Transport Layer Security (TLS1.2)
  • HTTPS certificate manager
  • AES encryption for configuration file
  • Digest authentication using MD5/MD5-sess
  • OpenVPN, IEEE802.1X
  • IPv6, LLDP/CDP/DHCP VLAN, ICE
Other Physical Features
  • Color: Classic Grey
  • Wall mountable (optional)
  • External Yealink AC adapter (optional): AC 100240V input and DC 5V/2A output
  • USB output currency: 5V 500mA
  • Power consumption (PSU): 1.7W-4.3W
  • Power consumption (PoE): 2.2W-5.5W
  • Dimension (WDHT): 233mm222.6mm186.1mm41.7mm
  • Operating humidity: 1095%
  • Operating temperature: 040°C (+32104°F)
Display and Package Features
  • Package content:
  • - Yealink SIP-T54W IP phone
  • - Handset with handset cord
  • - Ethernet Cable
  • - Stand
  • - Quick Start Guide
  • - Power Adapter (Optional)
  • Qty/CTN: 5 PCS
  • N.W/CTN: 6.3 kg
  • G.W/CTN: 6.8 kg
  • Giftbox size: 259 mm243 mm103 mm
  • Carton Meas: 538 mm250 mm265 mm
FEATURE

User Friendly

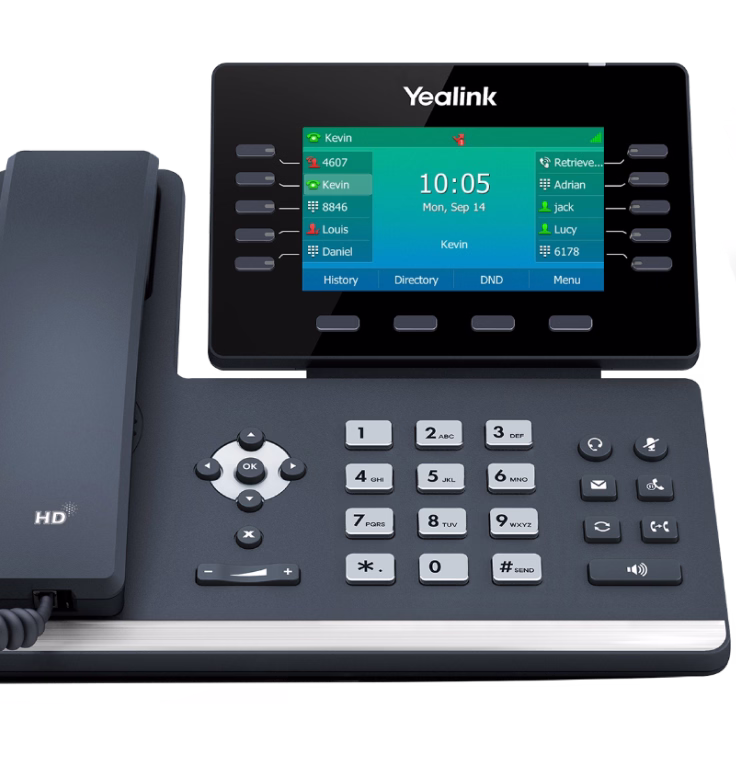

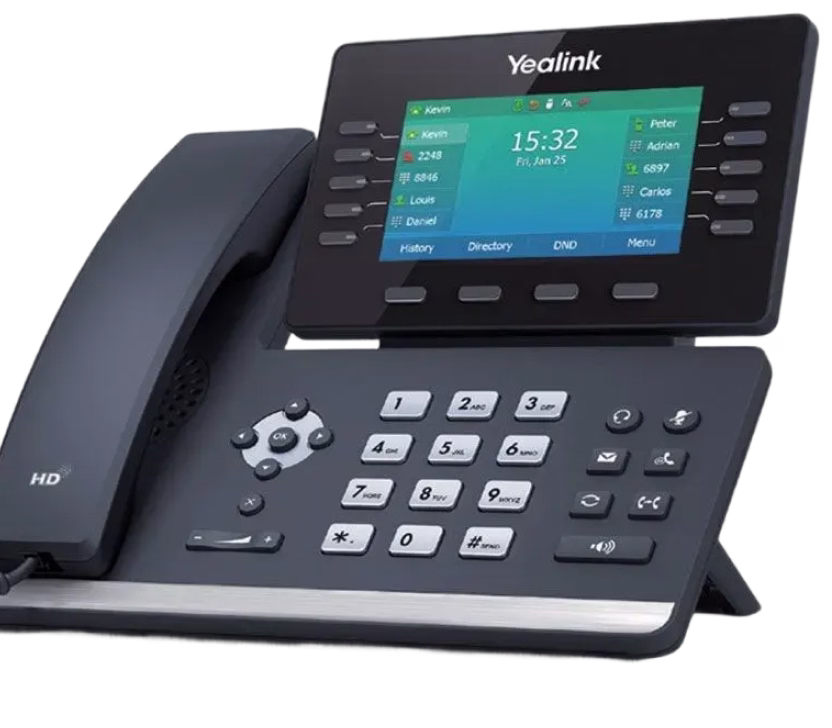

Yealink SIP-T54W IP Phone features an adjustable 4.3-inch color LCD screen that you can readily adjust it to the comfortable viewing angle according to yourself.

As to the audio quality, the SIP-T54W is coupled with the latest version of Yealink Optimal HD Voice technologies, including Yealink Acoustic Shield technology, that effectively eliminate background distractions and noises, deliver crystal clear voice even in a noisy environment.

Meanwhile, complying with the latest Hearing Aid Compatibility (HAC) Regulations, its HAC handset helps the person who is with hearing loss to hear the voice more clearly.

Find Out
FEATURE

Wireless Transmission

Yealink SIP-T54W IP Phone not only furnish you with the built-in Bluetooth 4.2 for Bluetooth headsets and mobile contacts synchronization, but also the built-in dual band Wi-Fi for Wi-Fi connectivity, allowing you to access the 5G Wi-Fi connectivity handily.

‍

Also if you want to expand your horizons for busy environments, or, share one phone system with your small team by adding multiple handsets, just simply turn your IP phone to the corded-cordless phone via DECT technology.

‍

Moreover, the IP phone can function with Yealink VC Desktop together to share content from your laptop, making collaboration much easier than before.
